　【Color Dome IR Camera C】　　　　　　　　

■　Feature ■

・1/3"SONY SUPER HADCCD

・Minimum Illumination, 0.3Lux/F1.2

・Horizontal Resolution 480TV Line

・Infared LED 24 peaces,
　Infared Led Effective Distance is 30m

・Infrared Lamps Auto Turn ON/OFF

・Zinc die-cast body

・AC Adaptor attachment

　　Market Unit Price　USD 680.00

　　Whole Sale Unit Price　　　USD　220.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:10pce

　※If you order over 100pce, we offer special price. Please contact us.

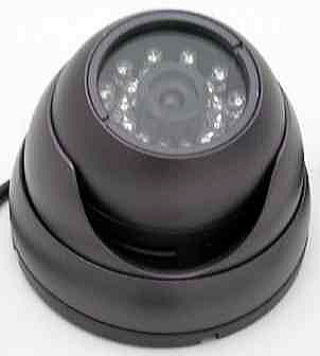

Apperance

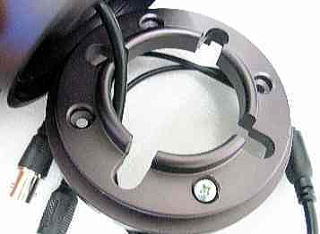

Mount

Adjust of angle	Connector	AC Adaptor
		*World wide Model

■　Technology Parameter 　■

Sort	Color Dome IR Camera
Model	BC-002C
Pickup Device	1/3"SONY Super HADCCD
Picture Elements	PAL: 582（H)×512(V) 　　　NTSC:510（H)×492(V)
System of Signal	NTSC/PAL
Horizontal Resolution	420 TV Line
Backlight Compensation	Auto
Lens	4mm
Angle of View	Horizontal:62 degrees, Vertical;48 degrees(Lens 4mm)
Shutter Speed	1/50(1/60) － 1/100,000 (s)
S/N Ratio	More than 48dB
Minimum Illumination	While IR ON "0" lux
Power Consumption	When the infrared lamps is turned on, the max electriccurrent is 300mA
Sync System	Internal Synchronization
Infrared Wavelength	850mm
Infrared LED Effective Distance	30m
Infrared LED	Auto Turn ON/OFF
Video Output	1.0VP － P,75Ω
Material	Zinc die-cast
Working Condition	Temperature:-10℃～＋50℃
Working Condition	Humidity:40％～95％
Power Source	DC12V
Weight	250ｇ
Dimensions	12cm Ｘ12cmＸ9cm（ N/D）
Standard pack components	AC Adaptor
Market Price	USD 680.00
