　【Special CCD Pinhole Camera】　　　　　　

■　Feature ■

・1/4 Sony CCD camera;

・Auto electronic shutter control;

・Auto back light compensation;

・Minimum Illumination;0.01Lux

・PAL/NTSC transfer automatically;

・Embedded Microphone

・Can be knocked-down, and it is equiped with a fixed ring being freely rotatable;

・Small size, light weight, low power consumption, high sensitivity, easy to install & operate, easy to conceal .

　Market Unit Price　USD 400.00

　　Whole Sale Unit Price　　　USD　200.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:10pce

　　※If you order over 100pce, we offer special price. Please contact us.

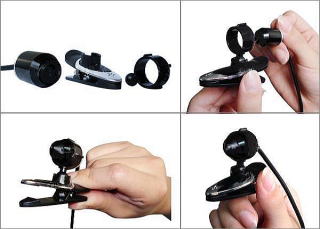

Appearance

Install

Tetrapolar Conector

Camera

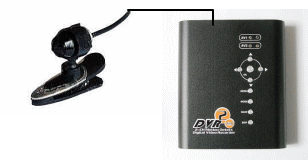

Connect with MiniDVR

※If connect with mini DVR, don't need power supply

■　Technology Parameter 　■

Sort	Special CCD Pinhole Camera
Model	BC-008
Pickup Device	1/4 Sony CCD
System of Signal	NTSC/PAL
Horizontal Resolution	480 TV Line
Backlight Compensation	Auto
Lens	6mm
Angle of View	Horizontal:44 degrees, Vertical;33 degrees(Lens 6mm)
Shutter Speed	1/50(1/60) － 1/100,000 (s)
OutPut	VIDEO/AUDIO
Minimum Illumination	0.01Lux
Power	DV12V
Working Condition	Temperature:-10℃～＋50℃,Humidity:40％～95％
Dimensions	φ17mm Ｘ27mm
Market Price	USD 400.00
