　【Vandal Proof & Fixed Dome Camera】　　　　　

≪For Shop or Restaurant, Supermarket≫

■　Feature ■

-High Sensitive 1/3" Sony Super HAD CCD

-530 TV Lines of High Resolution.410K

-DayNight Capability with High Sensitivity of 0.002 lx

-Varifocal Lens(4.0-9.0mm

-IP67 rating,Aluminium Diecasting Rugged Vandal Proof camera)

-Hard Disk Saving with DNR (Digital Noise Reduction)Technology

-Excellent Auto Tracking White-Balance.

-OSD camera menu control.

-Smoke Lens Cover

　Market Unit Price　USD 2000.00

　　Whole Sale Unit Price　　　USD　680.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:10pce

　※If you order over 100pce, we offer special price. Please contact us.

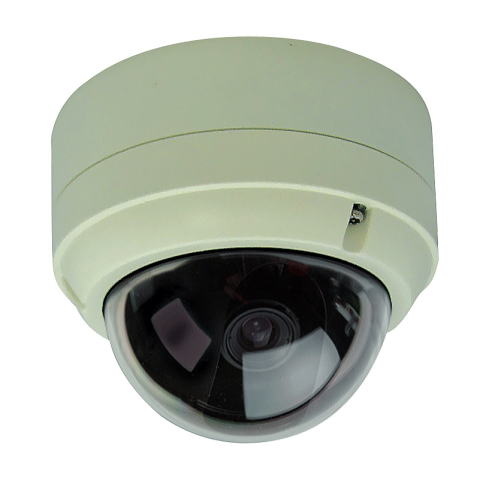

Appearance

Inside	OSD Board

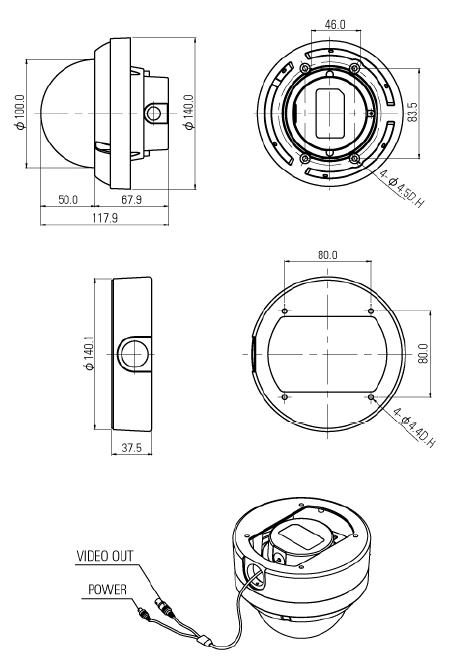

Demensions

■　Technology Parameter 　■

Sort	Vandal Proof ＆ Fixed Dome Camera
Model	BC-009
Pickup Device	1/3"SONY Super HADCCD
Picture Elements	PAL: 752（H)×582(V) 　　　NTSC:768（H)×494(V): 410K
System of Signal	NTSC/PAL
Horizontal Resolution	530 TV Line
Backlight Compensation	Auto
Lens	Varifocal Lens(4.0-9.0mm)
Shutter Speed	1/50(1/60) － 1/100,000 (s)
S/N Ratio	More than 50dB(AGC OFF)
Minimum Illumination	Color;0.3Lux/F1.2,B/W;;0.002Lux
Flickerlss Function	ON/OFF Switchable
Material	Aluminium Diecast
Dome Metal	Polycarbonate
Video Output	1.0VP － P,75Ω
Working Condition	Temperature:-10℃～＋50℃,Humidity:30％～85％
Power	DC12V 500mA
Weight	1000ｇ
Dimensions	φ10cm Ｘ14cmＸ12cm(N/D）
Certification	IP67(Water Proof)
Market Price	USD 2000.00
