 【Borderless Wireless Alarm System 2007】　　　　　　

■　Feature ■


Mail to:sales@borderless-j.com

  • With the crystal keypad to operate on the mail panel.
  • Wireless 6 defense zones , all which could be displayed on the panel.
  • Can set 6 user's phone numbers and 2 alarm center numbers.
  • Long distance to alarm/disalarm/monitor.
  • Each defense zone can have 28 detectors and remote controllers.
  • The panel will send signal if the detectors go wrong or being short of power.
  • Any accessory can be compatible to the system.
  • Cutting the phone wire will cause the sudden alarm to prevent people from destroy.
  • Inner Ni-hy battery ensures to keep working for 24 hours once power is off.
  • Alarm call has the priority to the normal call.
  • Can connect with the alarming center, after alarm, the center can know the detailed information of the owner, such as the position, alarm zone, telephone.
  • To against the frequency disturb, with the strong receiving and sending frequency function.
  • With international Ademco Contact ID,can work with the monitoring center.
  • Standard pack components:

    • 1 main panel
    • 1 wireless infrared (motion) detector
    • 1 wireless door magnetic detector
    • 1 siren
    • 2 remote controllers
    • 1 power supply
    • 1 manual
    • Weight: 1.2kg/set
    • Certifications: CE, FCC and ISO9001:2000

▲　Go to the top of this page

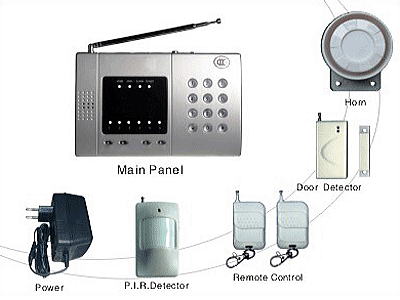

Standard Pack Components
Main Panel Wireless
Door Magnetic
Detector		 Siren Wireless
Infrared
(Motion) Detector		 Remote
Controllers
ワイヤレスホームセキュリティ＜ワイヤレス窓・ドアセンサー＞ ワイヤレスホームセキュリティ＜ブザー＞ ワイヤレスホームセキュリティ＜ワイヤレス赤外線探知器＞ ワイヤレスホームセキュリティ＜リモコン＞ワイヤレスホームセキュリティ＜リモコン＞
Optional Detector
Wireless
Door Magnetic
Detector		 Wireless
Infrared
(Motion) Detector		 Remote
Controllers		 Smoke
Detector		 Gas
Detector		 Wireless
Siren
ワイヤレスホームセキュリティ＜ワイヤレス窓・ドアセンサー＞ ワイヤレスホームセキュリティ＜ワイヤレス赤外線探知器＞ ワイヤレスホームセキュリティ＜リモコン＞ 火災警報器 ガス漏れ探知器 フラッシュサイレン

　　Whole Sale Unit Price
Standard Pack Components Wireless
Door magnetic
Detector		 Wireless
Infrared
(Motion) Detector		 Remote
Controllers
USD 400.00 USD 50.00
 USD 60.00 USD 40.00
Gas
Detector		 Wireless Siren Smoke
Detector
USD 45.00 USD 70.00 USD 35.00
　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:10pce

　※If you order over 100pce, we offer special price. Please contact us.

▲　Go to the top of this page
■　Technology Parameter 　■
Main Panel
Operating Voltage 　DC9Ｖ (Back-up battery inside)
Static Current 　< 50mA　
Operating Frequency 　315Mhz or 433.92Mhz
Wireless receiving distance 　100m-250m
Anti-interfere ability 　!V/m(20-1000Mhz)
Outer Alarm Siren Volume 　110dB
Working Condition 　Temperature:-10℃-+40℃, Humidity;<90%
Capacity for Wirelss Device 　99 pcs
Wireless Door Magnetic Detector
Power Supply 　DC12V(inner 12V battery)
Static Current 　< 20μA　
Transmission Current 　<15mA
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Wireless receiving distance 　No obstacle 80m
Interval Distance 　15mm
Working Condition 　Temperature:-10℃-+40℃, Humidity;<90%
Wireless Infrared (Motion) Detector
Power Supply 　DC9V(inner 9V battery)
Static Current 　< 100μA　
Transmission Current 　<20mA
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Wireless receiving distance 　No obstacle 80m
Detective Speed 　0.3-3m/s
Detective Distance 　5-12m
Detective Range 　Horizontal 110° Vertical60°
Working Condition 　Temperature:-10℃-+40℃, Humidity;<90%
Remote Controllers
Power Supply 　DC12V(inner 12V battery)
Static Current 　0　
Transmission Current 　<15mA
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Wireless receiving distance 　No obstacle 80m
Working Condition 　Temperature:-10℃-+40℃, Humidity;<90%
Smoke Detector
Power Supply 　DC9V(inner 9V battery)
Power consumption 　< 1W　
Transmission Current 　<20mA
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Wireless receiving distance 　No obstacle 80m
Alarm Output 　Soundalarm
Sensitivity 　ⅠorⅡlevel
Gas Detector
Induced Gas 　Natural Gas/LPG
Power Input 　DC 12V
Transmission Current 　<20mA
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Wireless receiving distance 　No obstacle 80m
Power Supply 　≤140mA
Buzzer Level 　≥70dB/m
Alarm Density 　10% LEL
Working Condition 　Temperature:-10℃-+55℃, Humidity;<90%
Alarm Density Error 　±5% LEL
Alarm Mode 　Light & sound alarm
Wireless Siren
Capacity for Wirelss Device 　20 pcs
Power Input 　DC 12V
Alarm Sound 　120dB
Operating Frequency 　315Mhz/433Mhz±0.5Mhz
Size 　12x7.2x4.5cm
