   【Borderless Wireless Alarm System 2007W】
■ Feature ■


Mail to:sales@borderless-j.com

*Product Description
This alarm system needs to connect telephone line, on the panel indicate 32wireless&7wired defense zone, widely used in enterprises, finance system, business and house etc, compatible with kinds of wired/wireless alarm accessories to burglarproof, anti-robbery, fireproofing anti-gangster, and anti-theft etc

*Feature
1. Excellent design, so generous and elegant

2. When the panel is moved, the alarm will start and the siren will sound with high db, meanwhile, the alarm will auto dial the phones preset.

3. When the phone line is cut, the panel will sound at high db.

4. Digital LED show ( 32 wireless defense zone display 1-32;7wired defense zone display 91-97) on the panel when alarm takes place, so know which defense zone is triggered

5. Each defense zone can separately set arm/disarm, delay alarm and so on

6. Support anti-decode with remote control

7. Have the function of one-key arm, freely by keeping pressing one key on remote control

8. Can set the reminder sound of defense zones.Will remind users of remembering arm the alarm system when going out.

9. It stores 3 groups of monitoring center and 6 groups of user phone numbers to dial out and play the recorded message if there is an alarm.

10. Can arm/disarm with remote control or keypad on the control panel

11. Available to arm/disarm/listen-in by calling the host phone number (The phone numbers of control panel).

12. Have the function of reminder for circuitry failure.For example, if telephone line is cut or short, the control panel will alarm.

13. Have in-built backup battery and can continue to work and last for 24 hours when electricity is cut or in failure.

14. Compatible with wired/wireless alarm accessories such as:Door sensor, P.I.R detector, remote controller, gas sensor, smoke sensor, panic button, infrared baluster.

15. Widely used in enterprises, government, finance system, business and house etc

16. This new burglarproof alarm system, is very stable and easy to install and operate

17.  Kits:1 main panel, 1 wireless PIR sensor, 1 wireless door sensor, 1 siren, 2 remote controllers, 1 power supply and manual



▲ Go to the top of this page

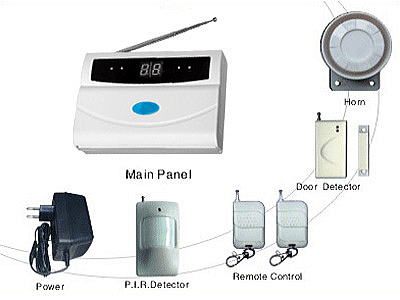

Standard Pack Components
Main Panel Wireless
Door Magnetic
Detector
Siren Wireless
Infrared
(Motion) Detector
Remote
Controllers
ワイヤレスホームセキュリティ<ワイヤレス窓・ドアセンサー> ワイヤレスホームセキュリティ<ブザー> ワイヤレスホームセキュリティ<ワイヤレス赤外線探知器> ワイヤレスホームセキュリティ<リモコン>ワイヤレスホームセキュリティ<リモコン>

Optional Detector
Wireless
Door Magnetic
Detector
Wireless
Infrared
(Motion) Detector
Remote
Controllers
Smoke
Detector
Gas
Detector
Wireless
Siren
ワイヤレスホームセキュリティ<ワイヤレス窓・ドアセンサー> ワイヤレスホームセキュリティ<ワイヤレス赤外線探知器> ワイヤレスホームセキュリティ<リモコン>

    Whole Sale Unit Price
Standard Pack Components Wireless
Door magnetic
Detector
Wireless
Infrared
(Motion) Detector
Remote
Controllers
USD 400.00 USD 50.00
USD 60.00 USD 40.00
Gas
Detector
Wireless Siren Smoke
Detector
USD 45.00 USD 70.00 USD 35.00
  *FOB Tokyo
  *Terms of payment: TT in advance
  *Minimum Order Lot:10pce


 ※If you order over 100pce, we offer special price. Please contact us.


▲ Go to the top of this page


■ Technology Parameter  ■

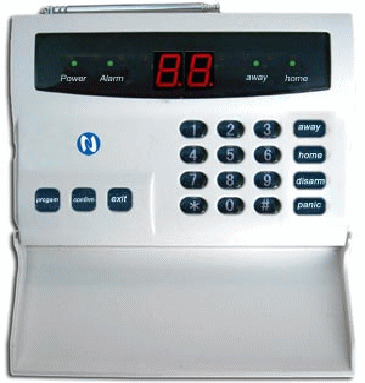

Main Panel
Operating Voltage  DC12V (Back-up battery inside)
Static Current  < 50mA
Operating Frequency  315Mhz or 433.92Mhz
Wireless receiving distance  100m-250m
Anti-interfere ability  !V/m(20-1000Mhz)
Outer Alarm Siren Volume  110dB
Working Condition  Temperature:-10℃-+40℃, Humidity;<90%
Capacity for Wirelss Device  32 pcs
Wireless Door Magnetic Detector
Power Supply  DC12V(inner 12V battery)
Static Current  < 20μA
Transmission Current  <15mA
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Wireless receiving distance  No obstacle 80m
Interval Distance  15mm
Working Condition  Temperature:-10℃-+40℃, Humidity;<90%
Wireless Infrared (Motion) Detector
Power Supply  DC9V(inner 9V battery)
Static Current  < 100μA
Transmission Current  <20mA
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Wireless receiving distance  No obstacle 80m
Detective Speed  0.3-3m/s
Detective Distance  5-12m
Detective Range  Horizontal 110° Vertical60°
Working Condition  Temperature:-10℃-+40℃, Humidity;<90%
Remote Controllers
Power Supply  DC12V(inner 12V battery)
Static Current  0
Transmission Current  <15mA
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Wireless receiving distance  No obstacle 80m
Working Condition  Temperature:-10℃-+40℃, Humidity;<90%
Smoke Detector
Power Supply  DC9V(inner 9V battery)
Power consumption  < 1W
Transmission Current  <20mA
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Wireless receiving distance  No obstacle 80m
Alarm Output  Soundalarm
Sensitivity  ⅠorⅡlevel
Gas Detector
Induced Gas  Natural Gas/LPG
Power Input  DC 12V
Transmission Current  <20mA
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Wireless receiving distance  No obstacle 80m
Power Supply  ≤140mA
Buzzer Level  ≥70dB/m
Alarm Density  10% LEL
Working Condition  Temperature:-10℃-+55℃, Humidity;<90%
Alarm Density Error  ±5% LEL
Alarm Mode  Light & sound alarm
Wireless Siren
Capacity for Wirelss Device  20 pcs
Power Input  DC 12V
Alarm Sound  120dB
Operating Frequency  315Mhz/433Mhz±0.5Mhz
Size  12x7.2x4.5cm
